Josam  /  Products
Product Image

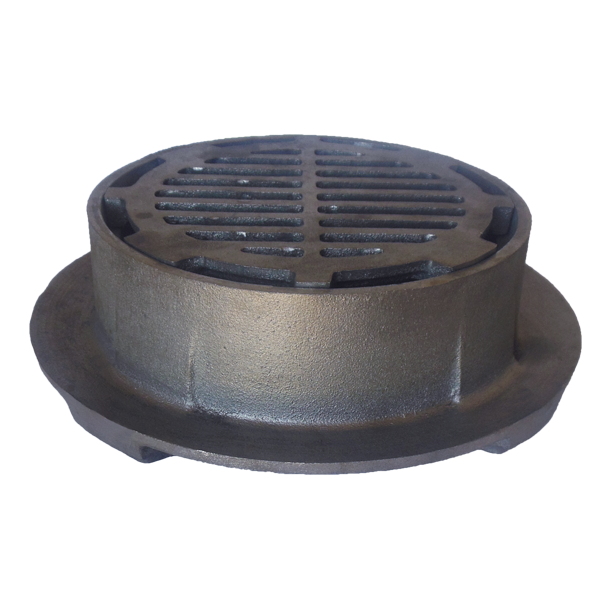

32100-SS Series

Super-Flo Floor Drain Cast Stainless Steel

Specification
Josam 32100-SS Series Type 316L cast stainless steel Floor Drain with double drainage flange, weepholes, round top, loose-set anti-tilting SUPER-FLO grate with perimeter drainage slots, bottom outlet, butt weld connection for schedule 40 pipe.

Application

Product Details
Parts
List
Submittal Sheets
CAD Drawings
Resource Center
Price
Item
Domestic Content Message
OPTIONS
-TSITrap Seal Insert -69Schedule 10 Butt Weld Outlet
-1Satin Finish Nikaloy Grate -8Solid Cover
-25Type 304 Stainless Steel Recessed Closure Plg -81Shallow Stainless Steel Sediment Bucket
-26Molded ABS Recessed Closure Plug -9Stainless Steel Mesh Screen on Underside Grt
-34"T" Handle for Recessed Plug
-61Flashing Clamp Device
TYPE # PIPE SIZE  A
32102-SS 2 1-7/8
32103-SS 3 2-3/8
32104-SS 4 2-1/2

Cross Reference Guides

This cross reference guide offers the best cross reference from other drain manufacturer’s products to a Josam equivalent series. You may need to add options to the Josam series to match the other manufacturer’s options. In some cases, adding options on a competitor’s model will require a different Josam series than the one selected in this chart. If you need assistance with product cross reference, please contact  Josam Customer Service.

JR Smith

Mifab

Wade

Watts

Zurn
