Josam  /  Products

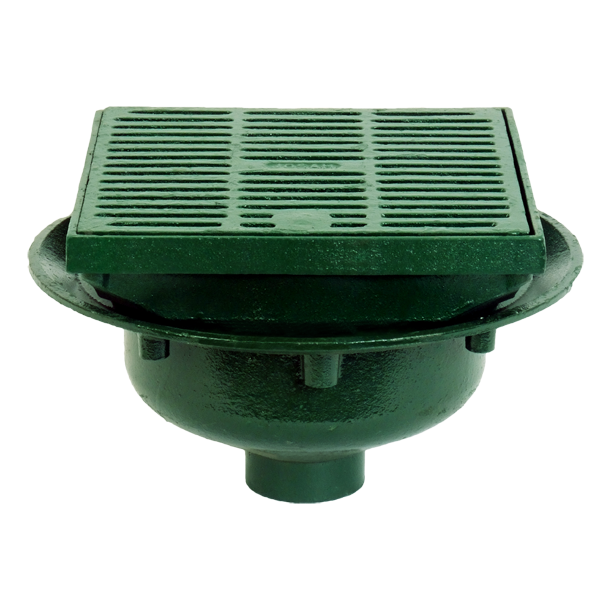

Product Image

37820 Series

Floor Drain: Cast Iron with Square Top, Heavy Duty Grate

Specification
37820 series coated cast iron Floor Drain, two-piece deep body with double drainage flange, WEJLOC non-puncturing flashing collar, weepholes, bottom outlet, square top, heavy-duty, loose-set grate and removable sediment bucket.

Application

Product Details
Parts
List
Submittal Sheets
CAD Drawings
Resource Center
Price
Item
Domestic Content Message
OPTIONS
-AELEVELEZE Adjustable Extension -501/2 Inch Primer Tap
-AREAcid-Resisting Epoxy -7Ductile Iron Grate
-TSITrap Seal Insert -70Less Bucket
-VPSecured Grate, Vandal-Proof Screws -84S.S. Mesh Bucket Liner
-14Hinged Grate -88Supplementary Strainer
-18Hinged Grate with Locking Device -92Galvanized Cast Iron Parts
-19C.I. Undergrate w/Satin Fin Nik Top
-20C.I. Undergrate w/Satin Fin Brz Top -XInside Caulk Outlet
-39Solid Cast Iron Cover -ZNo-Hub Spigot Outlet
-4Secondary Flashing Clamp -66No-Hub Side Outlet
-493/4 Inch Primer Tap
TYPE # PIPE SIZE  LBS
37822 2 56
37823 3 58
37824 4 60
37825 5 63
37826 6 65
37828 8 67

Cross Reference Guides

This cross reference guide offers the best cross reference from other drain manufacturer’s products to a Josam equivalent series. You may need to add options to the Josam series to match the other manufacturer’s options. In some cases, adding options on a competitor’s model will require a different Josam series than the one selected in this chart. If you need assistance with product cross reference, please contact  Josam Customer Service.

JR Smith

Mifab

Wade

Watts

Zurn
